SK金属扩张网


特性:

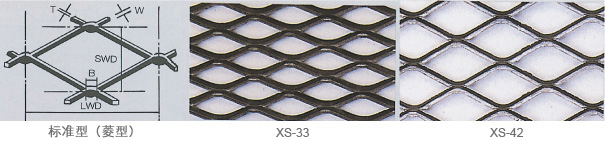

a .网目为菱形或龟甲形,整齐不会伸长,冲击耐力强。
b. 重量轻而坚固。
c. 外观美丽,适于装饰等用途。
d. 具良好之通光,通气性,施容易而经济。

用途:
适用于各种机器防护栏,隔栏,发电所电缆架,车辆通气窗,或各种篮框,各种围墙,栏杆,保护网,电气器具,家具及水泥补强材料等,具无限用途范围。



Specification: Expanded Steel Mesh to BS 405
Hot Dip Galvanised to BS 729 1971 / 1986 / BS EN ISO1461:1999


Steel Mesh - SK Expanded Metal Lath (Job Reference)

SK Expanded Metal Lath / Hot-dip Galvanised

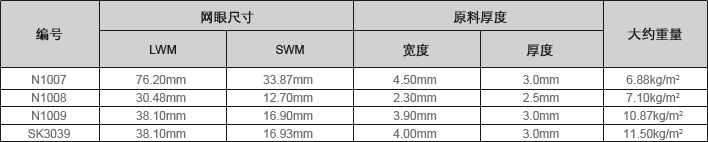

Size: 2600mm(LW:38.10mm) x 2440mm(SW:16.93mm/16.90mm)
Inner Dye Size: 38.10mm Vertical Long x 16.90mm width x Thickness 3mm x wire 3.9mm
Specification: Expanded Steel Mesh to BS 405
Hot Dip Galvanised to B.S. 729 or BS EN ISO 1460:1999
Galvanised Security Shear Unt M8
Size: M8 x 35mm Galv-Bolt With Security Shear Nut
          M8 x 'U'Bolt Galv-Bolt With Clamp Plate & Security Shear Nut



Consultant

Job

1. Hip Hing Construction Ltd. Tai Lam Correctional Institution, Tai Lam Chung, N.T.
Contact No.: TC032&TC033

2. Hang On construction Engineering Co., Ltd. Chi Ma Wan Correctional Institution, Lantan Island, N.T.
Contact No.: TCR012
Order No.:B5576690

3. Master Legend Engineering Limited Stanley Prisons - General 99 Tung Tau Wan Road. Stanley District Hong kong
Contact No.: TCR012
Order No.:B5444835

4. Able Engineering Company Limited Hei Ling Chau Treatment Centre 18A Lantan Island, N.T.
Contact No.: TCL-071
